Earth moving / Trenchers

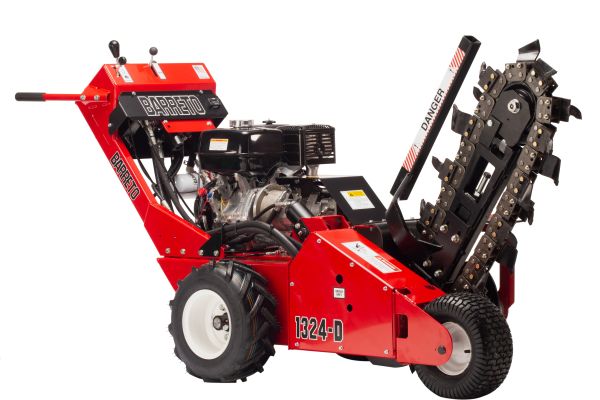

Trencher Barreto 2WD 1324D-6MS 02907 Dig trenches up to 60 cm deep quickly with more power
This compact wheel drive trencher is designed to dig trenches very quickly and easily up to 10 or 15 cm wide and 45 or 60 cm deep. This machine is ideally suited for laying of cables, drainpipes, gas and water pipes as well as for the installation of kerb stones and/or hedges etc.
Advantages
- Easy operation.
- Chain tension can be easily adjusted when needed.

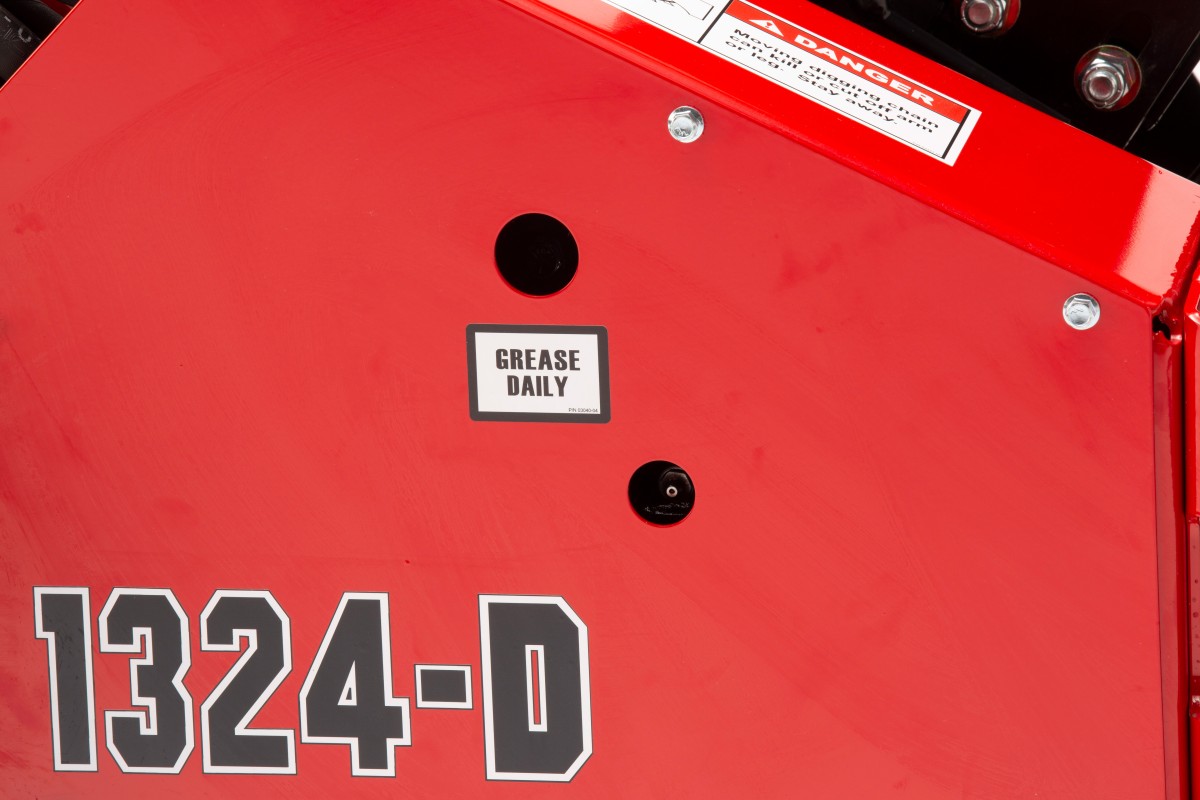

- All components are easily accessible for maintenance.

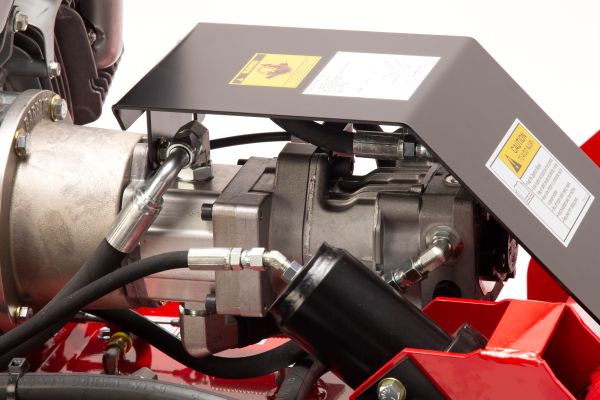

- The hydraulic pumps are protected yet accessible.

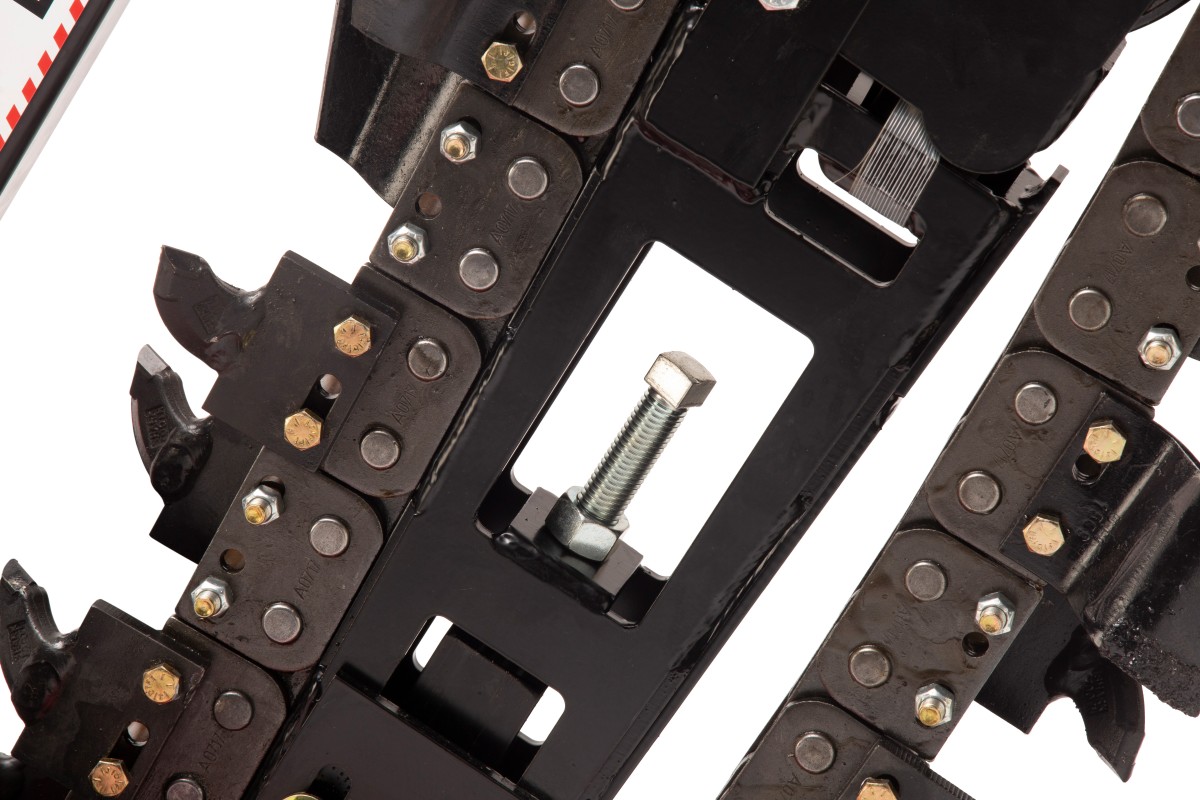

- The chain consists of a combination of widia teeth and cup cutters. These guarantee perfect operation in almost any soil.
- Hydraulic depth adjustment from 0 to 60 cm.
Technical specifications
- Motor: Honda GX390 13 HP
- Weight: 408 kg
- Trench depth: continuously variable from 0 to 60 cm
- Trench width: 10 or 15 cm
- Speed: forward max. 3.3 km/h
- Speed: reverse max. 1.65 km/h
- Wheelbase: 89 cm
- Standard chain: Combo chain 15 cm - 60 cm
Product specifications
- Dimensions: 211 x 89 x 115 cm
- Item no.: 02907
